CascadeWidget Class Reference

base class of cascade widgets More...

#include <cascade/widgets/CascadeWidget.h>

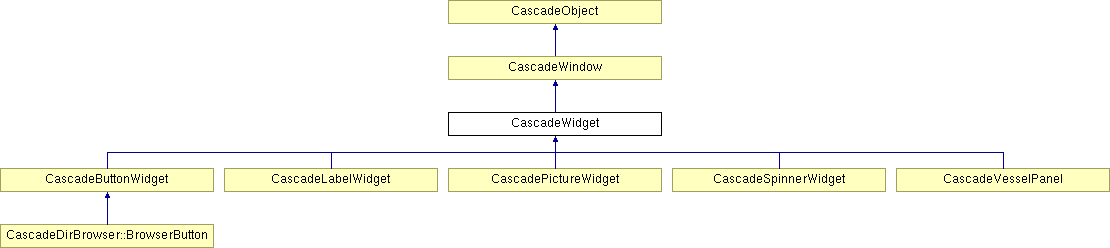

Inheritance diagram for CascadeWidget:

List of all members.

Public Types
enum	Scheme {   kActiveNormal = 0, kActiveFocus = 1, kInactiveNormal = 2, kInactiveFocus = 3,   kDisabled = 4, kNumSchemes = kDisabled + 1 }
Public Member Functions
	CascadeWidget ()
virtual	~CascadeWidget ()
CascadeColor	GetColorHi ()
CascadeColor	GetColorLo ()
CascadeColor	GetColorMid ()
CascadeColor	GetColorText ()
CascadeFont	GetFont ()
void	SetDisabled (bool bDisabled, bool bRedraw=true)
bool	IsDisabled () const
Scheme	GetScheme ()
virtual bool	WillAcceptFocus ()
Static Public Member Functions
static CascadeColor	GetColorHi (Scheme scheme)
static CascadeColor	GetColorLo (Scheme scheme)
static CascadeColor	GetColorMid (Scheme scheme)
static CascadeColor	GetColorText (Scheme scheme)
static CascadeFont	GetFont (Scheme scheme)
static void	SetColorHi (const CascadeColor &color, Scheme scheme)
static void	SetColorLo (const CascadeColor &color, Scheme scheme)
static void	SetColorMid (const CascadeColor &color, Scheme scheme)
static void	SetColorText (const CascadeColor &color, Scheme scheme)
static void	SetFont (const CascadeFont &font, Scheme scheme)
static void	NotifyParametersChanged ()
Protected Attributes
bool	m_bDisabled
Friends
class	CascadeApp

---

Detailed Description

base class of cascade widgets

Skip the description

CascadeWidget is the base class of CascadeWidgets.

---

class CascadeWidgets

---

Member Enumeration Documentation

enum CascadeWidget::Scheme

represents a color/font scheme for widget drawing For each user interface element (such as color or font) there are 5 schemes depending on the focus and activation state to be rendered. See also: SetColorHi(), SetColorMid(), SetColorMid(), SetColorText(), SetFont() GetColorHi(), GetColorMid(), GetColorMid(), GetColorText(), GetFont() Enumeration values: kActiveNormal  the widget is a non-focus widget in the active app kActiveFocus  the widget is the focus-widget in the active app kInactiveNormal  the widget is a non-focus widget in an inactive app kInactiveFocus  the widget is the focus-widget in an inactive app kDisabled  the widget is disabled kNumSchemes

---

Constructor & Destructor Documentation

CascadeWidget::CascadeWidget (   )

The CascadeWidget constructor - lightweight. This base class constructor is lightweight.

virtual CascadeWidget::~CascadeWidget (   )  [virtual]

Destructor. The destructor.

---

Member Function Documentation

static CascadeColor CascadeWidget::GetColorHi (  Scheme  scheme  )  [static]

gets the 3d highlight color for a particular scheme GetColorHi() returns the 3d highlight color for a particular scheme. This function is static so that non-CascadeWidget-derived classes can determine the user interface parameters for a particular scheme. Parameters: scheme  the scheme to retrieve the color for Returns: the 3d highlight color for the scheme

CascadeColor CascadeWidget::GetColorHi (   )  [inline]

static CascadeColor CascadeWidget::GetColorLo (  Scheme  scheme  )  [static]

gets the 3d lolight color for a particular scheme GetColorLo() returns the 3d lolight color for a particular scheme. This function is static so that non-CascadeWidget-derived classes can determine the user interface parameters for a particular scheme. Parameters: scheme  the scheme to retrieve the color for Returns: the 3d lolight color for the scheme

CascadeColor CascadeWidget::GetColorLo (   )  [inline]

<returns the highlight color the widget should use for rendering 3d elements GetColorHi() automatically takes into account this widget's current focus and activation state and returns the appropriate highlight color for rendering 3d elements. Returns: the 3d highlight color this widget should use for rendering now See also: GetColorLo(), GetColorMid(), GetColorText(), GetColorText(), GetFont() SetColorHi()

static CascadeColor CascadeWidget::GetColorMid (  Scheme  scheme  )  [static]

gets the 3d mid color for a particular scheme GetColorMid() returns the 3d mid color for a particular scheme. This function is static so that non-CascadeWidget-derived classes can determine the user interface parameters for a particular scheme. Parameters: scheme  the scheme to retrieve the color for Returns: the 3d mid color for the scheme

CascadeColor CascadeWidget::GetColorMid (   )  [inline]

<returns the lolight color the widget should use for rendering 3d elements GetColorLo() automatically takes into account this widget's current focus and activation state and returns the appropriate lolight color for rendering 3d elements. Returns: the 3d lolight color this widget should use for rendering now See also: GetColorHi(), GetColorMid(), GetColorText(), GetColorText(), GetFont() SetColorLo()

static CascadeColor CascadeWidget::GetColorText (  Scheme  scheme  )  [static]

gets the text color for a particular scheme GetColorText() returns the text color for a particular scheme. This function is static so that non-CascadeWidget-derived classes can determine the user interface parameters for a particular scheme. Parameters: scheme  the scheme to retrieve the color for Returns: the text color for the scheme

CascadeColor CascadeWidget::GetColorText (   )  [inline]

<returns the background or mid color the widget should use for rendering 3d elements GetColorMid() automatically takes into account this widget's current focus and activation state and returns the appropriate background or mid color for rendering 3d elements. Returns: the 3d mid color this widget should use for rendering now See also: GetColorLo(), GetColorHi(), GetColorText(), GetColorText(), GetFont() SetColorMid()

static CascadeFont CascadeWidget::GetFont (  Scheme  scheme  )  [static]

gets the font for a particular scheme GetFont() returns the font for a particular scheme. This function is static so that non-CascadeWidget-derived classes can determine the user interface parameters for a particular scheme. Parameters: scheme  the scheme to retrieve the font for Returns: the text font for the scheme

CascadeFont CascadeWidget::GetFont (   )  [inline]

<returns the text color the widget should use for rendering GetColorText() automatically takes into account this widget's current focus and activation state and returns the appropriate text color for rendering 3d elements. Returns: the text color this widget should use for rendering now See also: GetColorLo(), GetColorMid(), GetColorHi(), GetFont() SetColorText()

Scheme CascadeWidget::GetScheme (   )

gets the scheme the widget should use for rendering GetScheme() returns the UI scheme that should be used for this widget taking into account the current focus and activation state of this and whether or not the widget is disabled. Returns: the ui scheme the widget should use for rendering now See also: Scheme

bool CascadeWidget::IsDisabled (   )  const [inline]

determines if the widget is disabled IsDisabled determines if the widget is disabled. Returns: whether or not the widget is disabled

static void CascadeWidget::NotifyParametersChanged (   )  [static]

notifies clients you have changed the widget ui scheme parameters call NotifyParamtersChanged() after changing paramters to notify (to CascadeApps) that the paramters have changed. NotifyParamtersChanged() is a no-op unless paramters have actually changed. NotifyParamtersChanged() will end up causing CascadeApp's OnWidgetParametersChanged() function to be called whose default behavior is to cause all materialized app windows to be redrawn. See also: CascadeApp, CascadeApp::OnWidgetParametersChanged()

static void CascadeWidget::SetColorHi (  const CascadeColor &  color, Scheme  scheme )  [static]

sets the 3d highlight color for a particular scheme SetColorHi() sets the 3d highlight color for a particular scheme. This function is provided so that clients can set the user interface parameters for a particular scheme. Note: After setting a combination of parameters you should call NotifyParametersChanged to notify all apps in the system that you have just changed the parameters. If you do not do this, the notification will take place the next time a client calls a Get() function. Parameters: color  the color to set as the 3d highlight color scheme  the scheme the color is to be applied to See also: NotifyParametersChanged()

static void CascadeWidget::SetColorLo (  const CascadeColor &  color, Scheme  scheme )  [static]

sets the 3d lolight color for a particular scheme SetColorLo() sets the 3d lolight color for a particular scheme. This function is provided so that clients can set the user interface parameters for a particular scheme. Note: After setting a combination of parameters you should call NotifyParametersChanged to notify all apps in the system that you have just changed the parameters. If you do not do this, the notification will take place the next time a client calls a Get() function. Parameters: color  the color to set as the 3d lolight color scheme  the scheme the color is to be applied to See also: NotifyParametersChanged()

static void CascadeWidget::SetColorMid (  const CascadeColor &  color, Scheme  scheme )  [static]

sets the 3d mid color for a particular scheme SetColorMid() sets the 3d mid color for a particular scheme. This function is provided so that clients can set the user interface parameters for a particular scheme. Note: After setting a combination of parameters you should call NotifyParametersChanged to notify all apps in the system that you have just changed the parameters. If you do not do this, the notification will take place the next time a client calls a Get() function. Parameters: color  the color to set as the 3d mid color scheme  the scheme the color is to be applied to See also: NotifyParametersChanged()

static void CascadeWidget::SetColorText (  const CascadeColor &  color, Scheme  scheme )  [static]

sets the text color for a particular scheme SetColorText() sets the text color for a particular scheme. This function is provided so that clients can set the user interface parameters for a particular scheme. Note: After setting a combination of parameters you should call NotifyParametersChanged to notify all apps in the system that you have just changed the parameters. If you do not do this, the notification will take place the next time a client calls a Get() function. Parameters: color  the color to set as the text color scheme  the scheme the color is to be applied to See also: NotifyParametersChanged()

void CascadeWidget::SetDisabled (  bool  bDisabled, bool  bRedraw = true )

sets the widget to be disabled or un-disabled Call SetDisabled() to mark the widget disabled; it will be rendered in its disabled state. SetDisabled(true) will only work if this is not the focus window. (You cannot disable the focus window). Parameters: bDisabled  true to set the widget disabled, false to enable it bRedraw  whether or not to redraw the widget in its new state See also: IsDisabled()

static void CascadeWidget::SetFont (  const CascadeFont &  font, Scheme  scheme )  [static]

sets the font for a particular scheme SetFont() sets the text font for a particular scheme. This function is provided so that clients can set the user interface parameters for a particular scheme. Note: After setting a combination of parameters you should call NotifyParametersChanged to notify all apps in the system that you have just changed the parameters. If you do not do this, the notification will take place the next time a client calls a Get() function. Parameters: font  the text font to set scheme  the scheme the font is to be applied to See also: NotifyParametersChanged()

virtual bool CascadeWidget::WillAcceptFocus (   )  [inline, virtual]

by default CascadeWidgets will accept input focus unless they are disabled WillAcceptFocus() is overridden so that the default behavior for CascadeWidget derived classes is to only accept focus if they are not disabled. Returns: whether or not the widget will accept the focus Reimplemented from CascadeWindow. Reimplemented in CascadeLabelWidget, CascadePictureWidget, and CascadeVesselPanel.

---

Friends And Related Function Documentation

friend class CascadeApp [friend]

Reimplemented from CascadeWindow.

---

Member Data Documentation

bool CascadeWidget::m_bDisabled [protected]

whether or not the widget is disabled m_bDisabled stores whether or not the widget is disabled

---

The documentation for this class was generated from the following file:

• CascadeWidget.h

---
